Stormcell
The StormCell is a smart engineered system designed for stormwater detention, to reduce weight and preload or to effectively fill a void.
The StormCell system offers a flexible design whilst being lightweight and high load-bearing. The system has minimal componentry for rapid assembly on-site and offers a high void ratio enabling the best utilisation of space on your site.
- Smart Engineered Design
- Quick and easy to install
- Saves TIME and MONEY
The Stormcell system provides stormwater detention when installed in commercial, residential and vehicle-driving areas. Vehicular options are available for creating trafficable areas, and modules are stackable which ensures economical transportation and on-site storage.

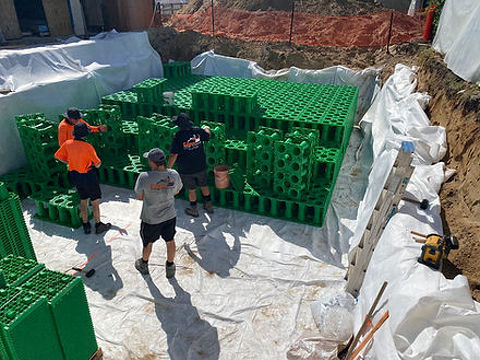

The system is simple and clever, designed for quick and easy installation. As it is very portable, it can be carried in to hard-to-reach places, allowing for installation in difficult situations.
50 ton per/sqm safe working load
The Specs
Scope
- Excavation depth: 1m - 9m
- Useable depth: 0.6m - 9m
- Backfill depth: 0.6m - 9m
Strength Load Figures
- Top: ≥505kn/m2@ 23°
- Side: ≥93kn/m2@ 23°
Specifications
- Length: 1000mm
- Width: 500mm
- Height: 400mm
- Weight: 16kg
- Void Ratio: 95%
- Water Storage: 190L
If you would like to know more please call or email us today.
